Production and installation of Mesh panels / rolls - Ariafil

Mesh panels / rolls

Mesh panels / rolls
Presentation:

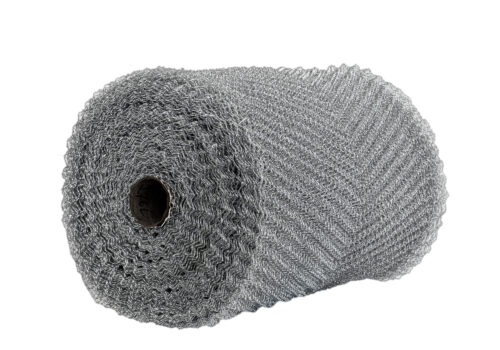

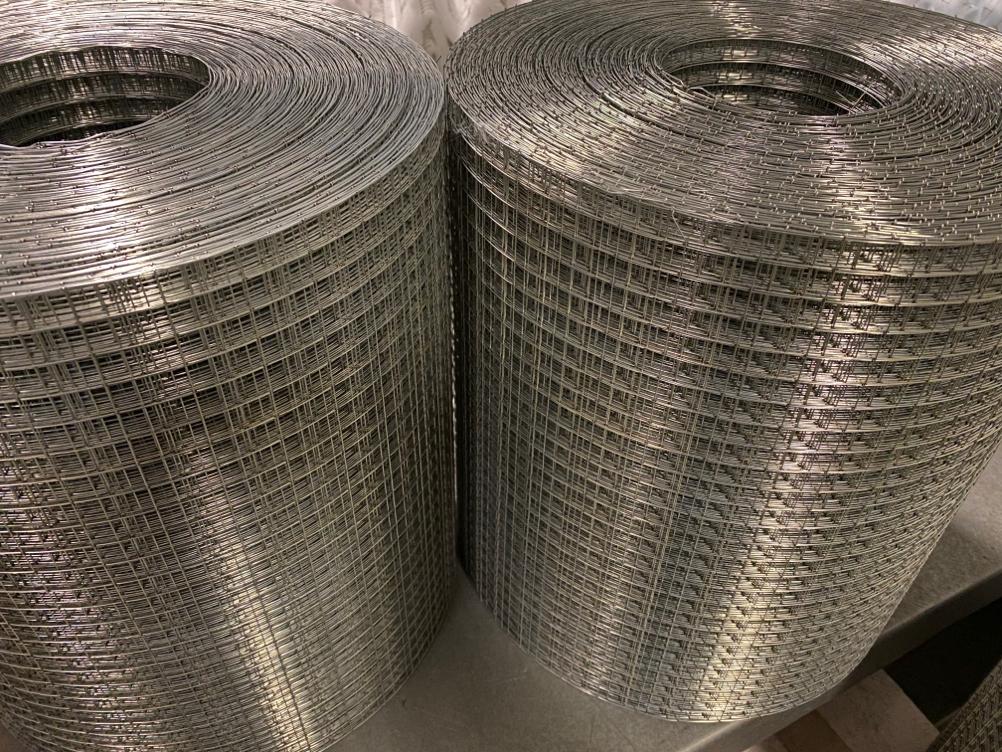

Rolls of galvanised and Aisi 304 mesh are available in different mesh types and wire diameters.

We can cut rolls to different heights as required or supply in panels.

On request

Sizes, thicknesses and materials are available as needed
ELECTRO-WELDED GALVANISED MESH
MESH in mmWIRE DIAMETER in mmHEIGHTS available
12×120,8From 100 to 1200
12×240,65From 100 to 1200
12×240,8From 100 to 1200
24×240,8From 100 to 1200



GALVANISED MESH AFTER WELDING
MESH in mmWIRE DIAMETER in mm HEIGHTS available
12×121600/800/1000
19×191,45600/800/1000
12×240,8From 100 to 1200
24×240,8From 100 to 1200



AISI 304 ELECTRO-WELDED MESH
MESH in mmWIRE DIAMETER in mm HEIGHTS available
8×81From 100 to 1000
12×120,8From 100 to 1000
